Chemical Injection Usage Data Header With Sampling Ports Well Surface Testing

  • 1
  • 2

Brand Name : JC Wellhead

Model Number : 2" Data Header

Certification : API 6A

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, D/P

Supply Ability : 50 sets / month

Delivery Time : 30-45 days

Packaging Details : Polywood case for land, air, ocean shipment

Application : Surface Well Testing Operation

Usage : Chemical Injection

Material : Alloy Steel

Production Level : PLS 3

Type : Injection Header

Standard : API 6A

Product name : Data Header

Working pressure : 10000 psi

Control : Needle Valve

Working condiction : standard serive or sour service

Contact Now

Data Header Injection Header with sampling ports well surface testing

The data header is a piping component with several ports along or around its length, the data header is usually situated immediately upstream of the choke and provides access to the flowstream for sampling, monitoring of pressure and temperature, sand erosion monitoring, and chemical injection, also called Injection header. The injection header is ususally mounted in the production flow path upstream and downstream of the surface choke manifold.

Features of Data Header

* Ports with valves to monitor flowline pressure, injection chemicals, obtain samples, or monitor sand production.

* Ports with thermowells to monitor flowline temperature or to insert erosion probes

* Can be attached to the inlet of the surface choke manifold.

* Meets applicable industry standards APi 6A and NACE MR0175-2015

* Ends connection of the data head can be weco union or Flanged

Technical parameter of Data Header

Service H2S and CO2
Size 52/65/78mm or 2", 3",4"
Working Pressure 5000/10000/15000psi
Working Temp. -20F--250F
General standard PR1
Data Ports

Integral Machined into Body

1/2" NPT- Qty 4

3/4" Autoclave Qty2

Checmical Injection 1/2" NPT needle valve and check valve
Sample Port 1/2" NPT needle valve
Pressure 1/2" NPT needle valve and pressure gauge
Deadweight tester 1/2" NPT needle valve
Temperature 3/4" Autoclave with thermowell
Standards

NACE MR-0175

API 6A

PSL-3, EE, P+U, With/Without Inlays in RTJ's for flanged end

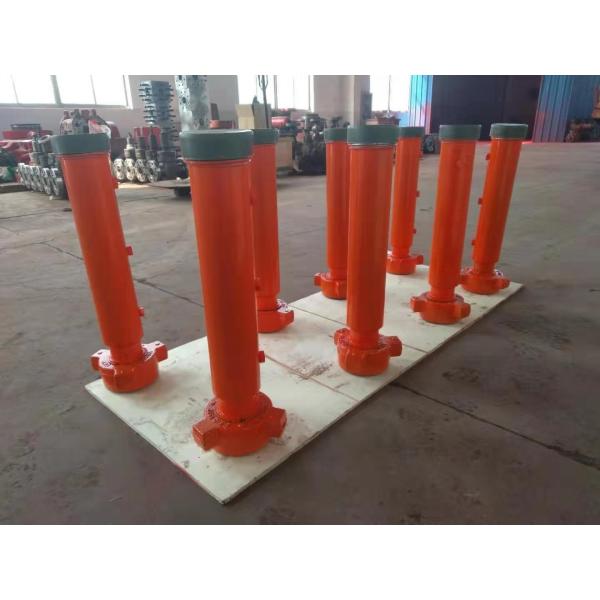

Chemical Injection Usage Data Header With Sampling Ports Well Surface Testing

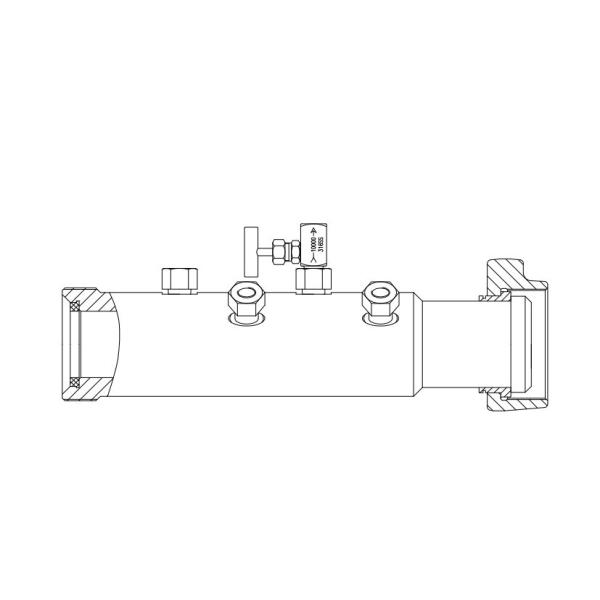

Chemical Injection Usage Data Header With Sampling Ports Well Surface Testing


About JC Wellhead

Jingcheng Petroleum Machinery Manufacturing Co.,Ltd was established in 2008, we are specialized in design and manufacturing of the oilfield wellhead equipment. We - YCJC are a registered supplier for CNPC, GWDC, CCDC in China.

We are able to manufacture and supply the wellhead equipment, well surface testing equipment, well flow control equipment according to API 6A, API 16A, and API 16C. The main products include wellhead Christmas tree, casing head, tubing head, casing spool, tubing spool, Gate valve, Choke valve, Check valve, , VR plug, Tubing hanger, casing hanger, Running tool, Wear bushing, double studded adpater flange,spacer spool / riser spool, flange adapter, union flange, Hammer union, Elbow, swivel joint, block cross, Block Tee, companion flange, instrument flange, weldneck flange, FC gate, FC seat, FC stem, API Clamp, API Clamp Hub, vairous high pressure maifold such as choke manifold,
