Featrues of Riser spool
- Providing different grades and model of drilling spools and adapters in accordance with variable BOP stacks
- The height of spools ranged from 24 to 26, and /or manufactured as per clients' order
- The bore sizes ranged from 7 1/16 up to 21 1/4, and working pressure from 2000psi to 15000ps
- The side outlets of spools from 2 9/16 to 4 1/16 or Weco Union
- The connection grooves lined with stainless steel
- The connection being made in studded, flanged, or clamp type, according to clients' order
- The spools and adapters conforming to API Spec 6A/16A

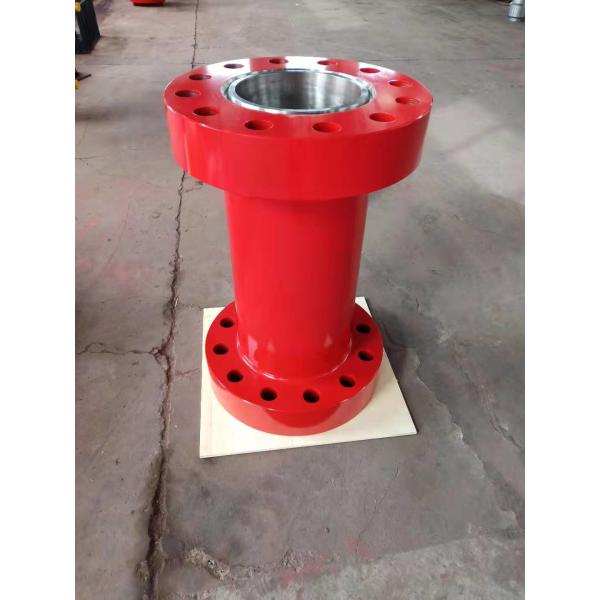

Technical parameter of the Wellhead Spacer Spool
| Working pressure | 2000PSI-20000PSI |
| Working medium | oil,natural gas,mud |
| Working temperature | -46℃-121℃(L-U) |
| Material class | AA –HH |
| Specification class | PSL1-PSL4 |
| Performance class | PR1-PR2 |
| Connections | API flange, API 16A Clamp |
Order specification of the 11"x 5000psi spacer spool
API 6A Hub Riser, 13 5/8”-5K BX-160 x 13 5/8”-5K BX-160, OAL 90cm, 2” WECO FIG1502T connector welding to spool, Pad eyes and lifting swivels are included. | 1 | EA |
About JC Wellhead
Jingcheng Petroleum Machinery Manufacturing Co.,Ltd was established in 2008, we are specialized in design and manufacturing of the oilfield wellhead equipment. We - YCJC are a registered supplier for CNPC, GWDC, CCDC in China.
The wellhead equipment we manufacture and supply include casing head, tubing head, casing spool, tubing spool, Gate valve, Choke valve, Check valve, X-mas tree, VR plug, Tubing hanger, casing hanger, Running tool, Wear bushing, spacer spool, flange adapter, union flange, Hammer union, Elbow, swivel joint, block cross, Block Tee, companion flange, instrument flange, weldneck flange, FC gate, FC seat, FC stem, API Clamp, API Clamp Hub
YCJC's advantage:
* Excellent and stable quality of the products conformed with API and ISO standard
* Strict quality control on raw material and machining, we can arrange the SGS or BV to witness the test
* We supply various wellhead products to meet the customers' operation.
* Timely delivery, professional service on export procedure,
* Product guarantee and best after-sales service.
